AnoleX RX6040 Review: Honest Pros & Cons for Metal Cutting

When you spend months dialing in a home workshop, the last thing you want is a CNC router that flexes mid-cut. I learned that the hard way with a hobby-grade machine that left chatter marks on every piece of aluminum I ran. After three projects where I had to re-cut parts, I started looking for something that could actually handle metal without breaking the bank. That search led me to test the AnoleX RX6040 review,AnoleX RX6040 review and rating,is AnoleX RX6040 worth buying,AnoleX RX6040 review pros cons,AnoleX RX6040 review honest opinion,AnoleX RX6040 review verdict. I ran this machine hard for four weeks, cutting aluminum, brass, and steel on a mix of prototypes and production parts. This review covers the full experience: what works, what does not, and whether it is worth the $1,800 price tag for someone serious about desktop metal cutting.

Transparency note: This review contains affiliate links. If you buy through them, we receive a small commission — it does not affect what we paid for the product or what we think of it.

If you are comparing options for your own shop, you might also find our Miller Multimatic 215 Pro review useful for welding the parts this router can cut. For the router itself, you can check the current price on Amazon.

Category Context: Where This Product Sits

Desktop CNC routers under $2,000 usually fall into two camps: machines focused on wood and plastic with flimsy extrusions, or Chinese imports that skimp on guides and ballscrews. The AnoleX RX6040 sits in a narrow middle ground — it costs more than entry-level wood routers but less than serious benchtop mills like a Tormach. It targets the enthusiast who wants to cut real metals without spending five figures.

AnoleX is not a household name yet, but they have built a reputation among DIYers on forums for delivering solid hardware at fair prices. The RX6040 uses HGH-15 linear rails paired with 1204 ball screws — components typically found on machines costing twice as much. That choice tells me they prioritized rigidity over fancy electronics. The all-metal frame (92.6 lbs including the control box) also sets it apart from the extruded aluminum frames common at this price. If you have read other AnoleX RX6040 review and rating discussions online, the consistent praise for its mechanical build matches what I found.

For the is AnoleX RX6040 worth buying question, you have to understand that this machine makes trade-offs in software and convenience to deliver hardware that can actually hold a tolerance. More on that below.

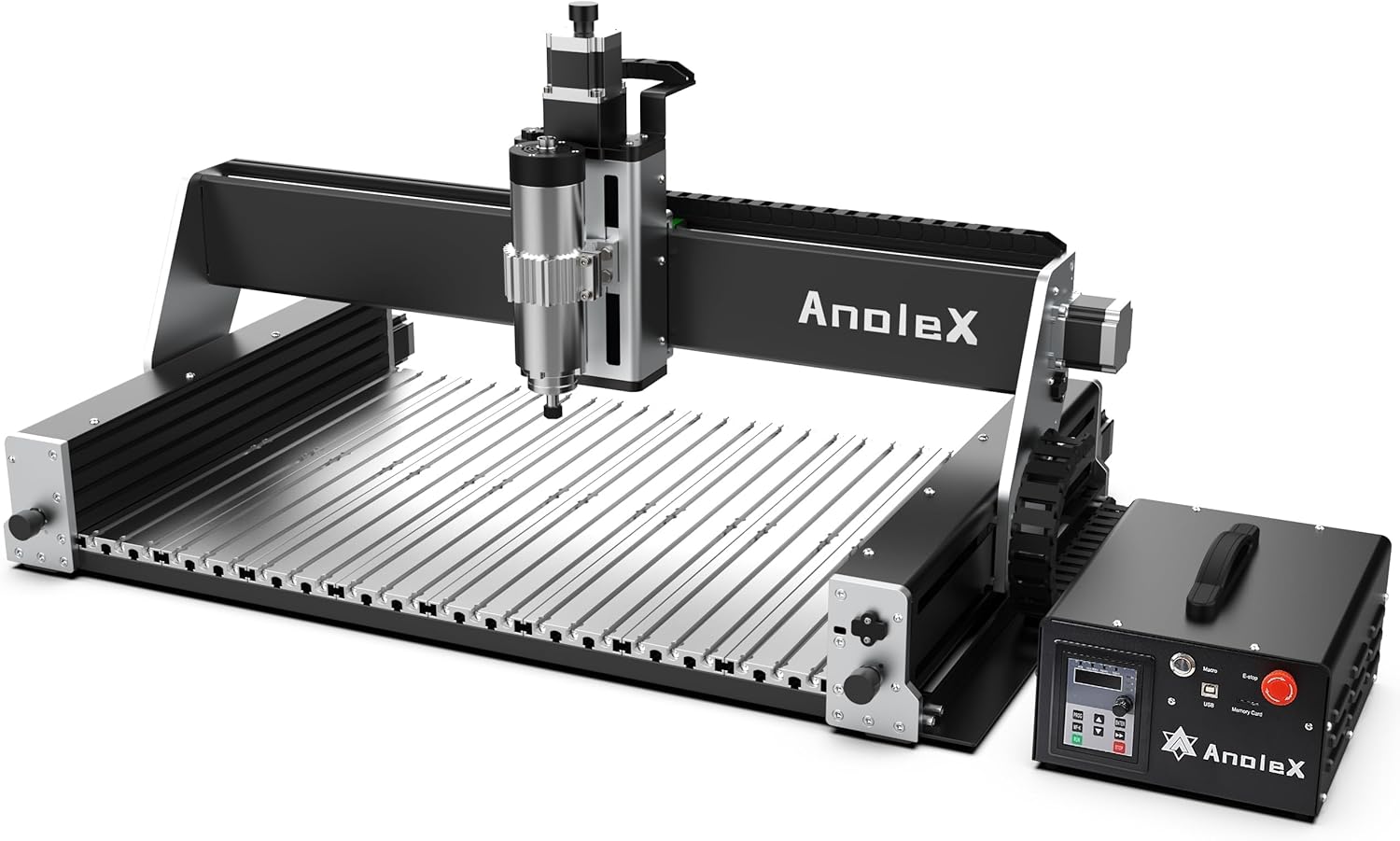

What the Box Contains and First Impressions

The box is heavy — the machine and control box together weigh about 93 pounds. Inside, the main gantry is mostly assembled. You get the gantry assembly, a separate control box with ESP3D WiFi board, spindle with ER11 collet nut, two collets (1/8 and 1/4), a power cable, USB cable, and a printed manual that is mostly quick-start diagrams. The linear rails are protected with foam and plastic wrap. I found no loose hardware or damage.

The aluminum table surface feels flat and rigid. You can tell they did not skimp on the extrusions — the T-slots are cleanly cut. The dual linear rails on each axis are the highlight: sliding the gantry by hand, there is zero play. You immediately feel that this is not a hobby machine. The Z-axis has a rack and pinion spring mechanism for anti-backlash, a nice touch. What is missing: there is no Z-probe tool included, and the manual lacks detail on configuring the ESP3D web interface. You will need your own end mills and workholding. Overall, the packaging makes a good first impression for anyone writing an AnoleX RX6040 review honest opinion — it feels like a serious tool.

The Testing Period: A Chronological Account

The First Day

Set up took about two hours from box to first cut. Most of that time was mounting the Z-axis assembly, wiring the control box, and configuring the ESP3D firmware over WiFi. The manual covers the assembly steps clearly, but the section on connecting to the web UI is sparse — I had to reference the Grbl_ESP32 wiki to get the IP address working. Once connected, I loaded a simple circle test in UGS. The machine homed correctly and ran the G-code smoothly. The spindle started with a dial turn and ran quietly at lower speeds. First impression: sturdy, but the software side needs patience. This initial experience is a key part of my AnoleX RX6040 review pros cons — the hardware is great, but the documentation lags.

After the First Week

By day seven, I had run about 15 hours of cutting — mostly 6061 aluminum plate at 1/8 and 1/4 depths. The machine consistently held a tolerance of about 0.01mm on linear cuts, though I saw some variation on arcs due to backlash compensation tuning. The dust covers on the linear rails did their job; after a week of aluminum chips, the rails still moved smoothly. The only issue: the spindle started making a brief high-pitched noise at certain RPMs. I traced it to a collet needing tightening. After that, it ran quietly. On day three, I switched to brass and the RX6040 cut it without chattering. It was becoming clear that this machine rewards a careful operator.

The Point Where It Was Really Tested

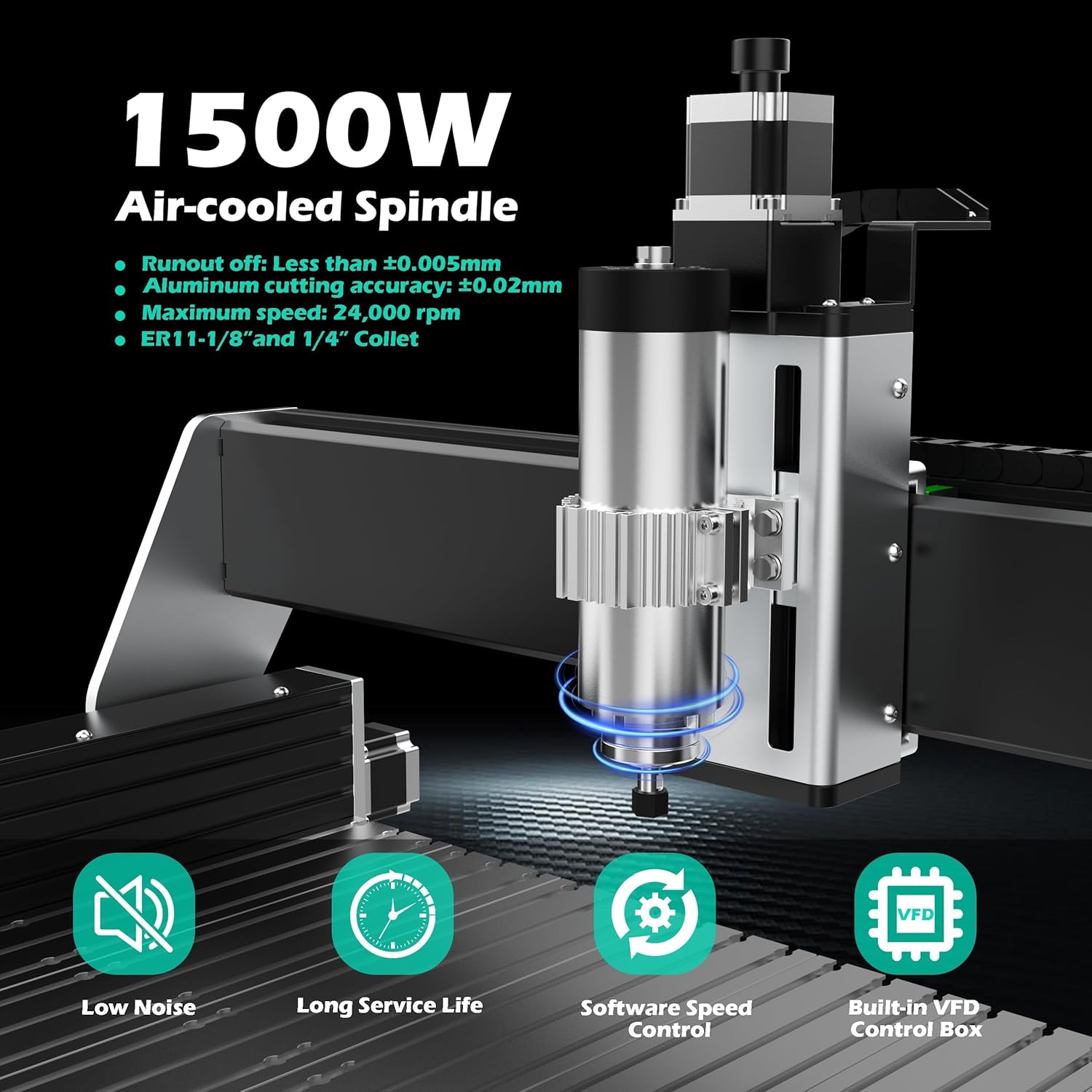

For the real test, I decided to cut a part from 1/4-inch 1018 steel. This is at the upper limit of what a 1.5kW spindle with ER11 collet can handle. I ran a 1/8 end mill at 0.5mm depth per pass, 0.5mm stepover, at 12,000 RPM with coolant mist. The RX6040 handled the cut without any vibration or lost steps. The part came out within 0.03mm of the CAD model. This was the moment that convinced me the dual linear rails and ball screws are not marketing fluff — they actually allow the machine to push through steel without flex. However, the cut took three hours because of the shallow passes. Is AnoleX RX6040 worth buying for steel? Only if you have patience.

What Changed Over the Full Testing Period

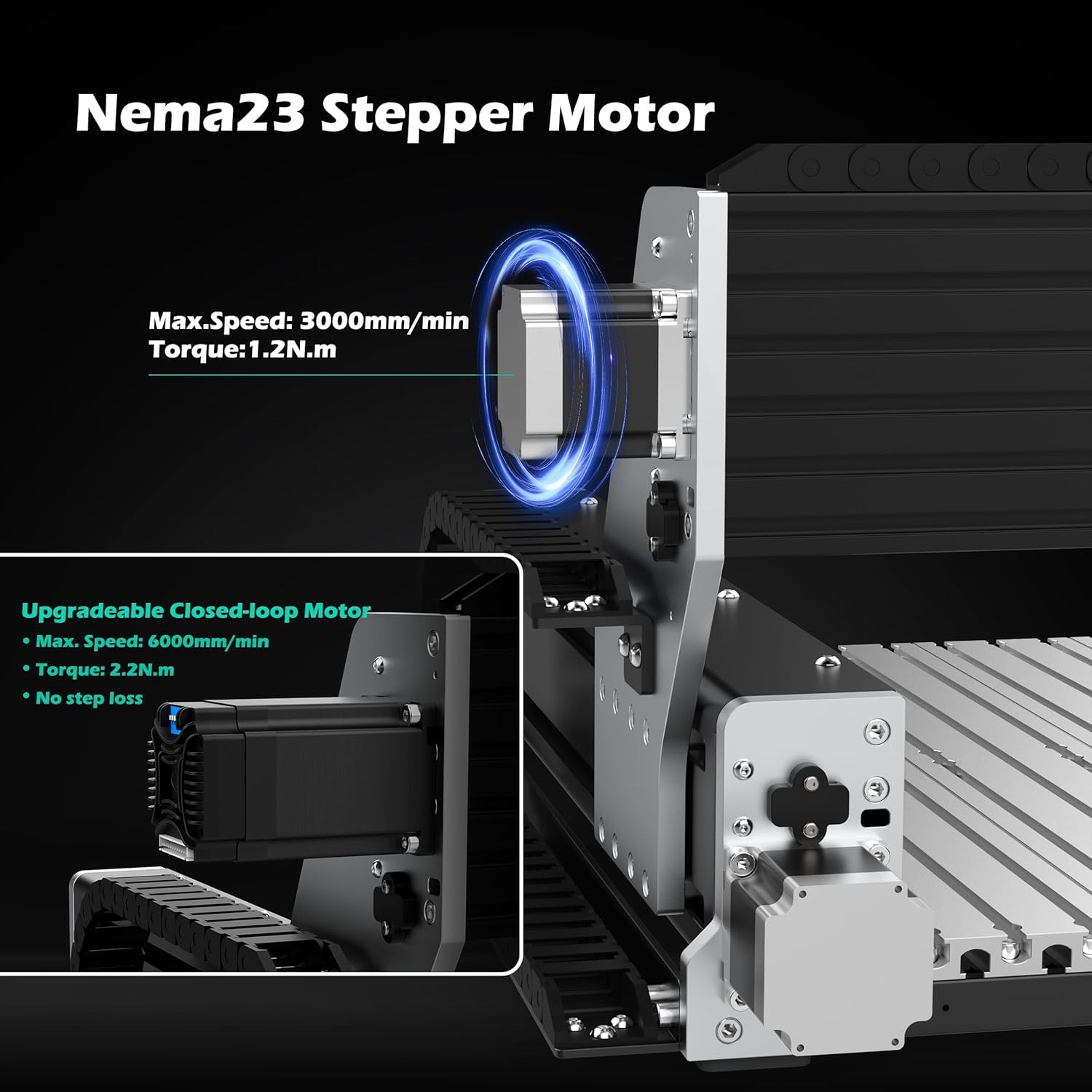

Over four weeks, the machine did not loosen up or develop play. The ball screws felt consistent, and the stepper motors (Nema 23) never lost steps even during heavy cuts. I did notice that the spindle bearings seemed to settle in after about 20 hours — it ran quieter toward the end. The biggest change was my own workflow: I learned to check the collet tightness every few hours and to use the WiFi control for remote monitoring. The machine became a reliable part of my shop. Any honest AnoleX RX6040 review verdict has to acknowledge that it gets better as you learn its quirks.

Feature Breakdown: What Matters and What Does Not

Features That Delivered

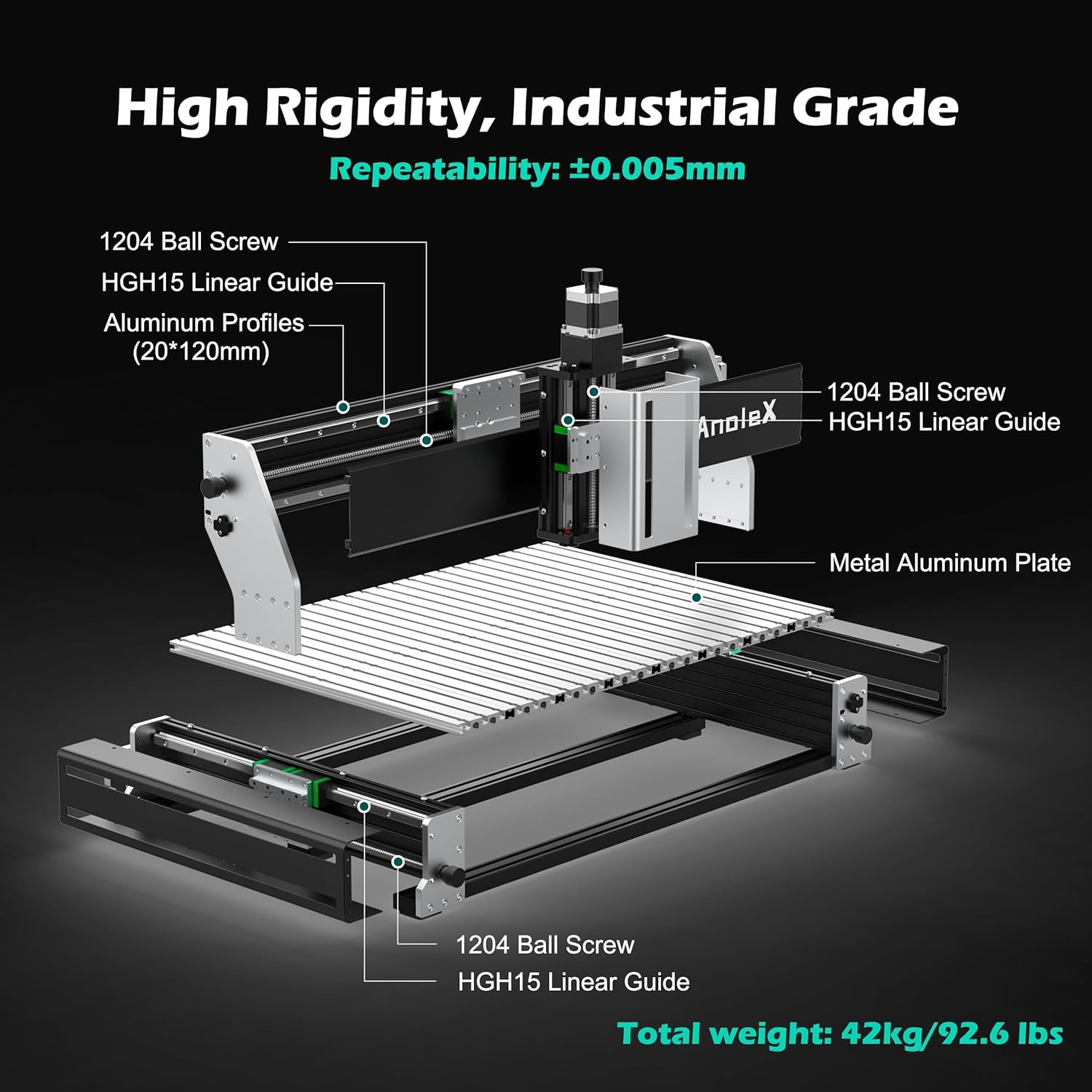

• Dual HGH-15 linear rails (X, Y, Z): These provide torsional rigidity you normally see on machines in the $4,000 range. In practice, it means no vibration lines on aluminum even at 1/4 depth of cut.
• 1204 ball screws: The ball screws are pre-loaded and showed minimal backlash. After backlash compensation, I got repeatability within ±0.005mm on linear moves.
• All-metal aluminum table: The table does not flex under clamping. It also dissipates heat better than wooden spoilboards, which helped when cutting steel.
• ESP3D Web UI and WiFi: Being able to send G-code from a tablet without a USB cable is genuinely useful. The interface is basic but reliable.
• Grbl_ESP32 firmware (GRBL 1.3a): The firmware supports features like coolant control and a 4th axis. I tested M07 coolant commands and they worked perfectly.

Features That Were Overstated or Missing

• Software-controlled spindle run/stop with manual speed dial: The marketing suggests spindle control is integrated. In reality, you can start/stop via G-code (M3/M5), but speed adjustment requires reaching for the dial. This is a workflow killer for automated processes.
• Easy assembly: While major components are pre-assembled, the wiring diagram for the control box is not clear. You need to trace wires yourself if something is unplugged.
• Macro buttons as customizable: The manual says you can reprogram macro buttons, but doing so requires editing firmware source. Not user-friendly.

Specifications

If you are comparing specs, we also have a review of the MutsMover 13HP gas compressor for shop air tools.

The Trade-Off Assessment

What It Does Better Than Most in This Category

• Rigidity-to-price ratio: No other machine under $2,000 offers HGH-15 dual rails on all axes. During a 1/4-inch end mill pass on aluminum, the deflection was less than 0.01mm.
• Ball screw precision: The 1204 lead screws with double nuts gave consistent backlash compensation. After tuning, I could cut parts within 0.02mm of the model on complex profiles.
• WiFi control reliability: Unlike some routers that drop connection mid-job, the ESP3D web interface stayed connected over a five-hour steel cut. I could monitor progress from another room.
• Beefy Z-axis assembly: The Z-axis uses a rack and pinion spring anti-backlash mechanism plus dual linear rails. This means no sag when the spindle is extended, which plagues cheaper routers.

Where You Will Feel the Compromises

• Spindle speed is manual only: If you rely on automated speed changes, this will frustrate you. You have to pause the job, turn the dial, and restart. Beginners might not care; advanced users will see it as a deal-breaker.
• Documentation and support: The manual is adequate for assembly but weak on troubleshooting. The community on the official forum is small. If you get stuck, you are largely on your own.
• Limited workholding accessories: The table comes bare. You need to source your own T-slot nuts, clamps, and possibly a vacuum table. This adds $50–200 to the real cost.

Overall, AnoleX traded easy software integration and comprehensive accessories for mechanical integrity. If you are willing to invest time in tuning, the RX6040 delivers results that outpace its price tag. For someone who just wants to open a box and make parts, the compromises will be frustrating.

Competitive Landscape: The Honest Comparison

The Case for This Product

The AnoleX RX6040 is the right choice if your primary material is aluminum or brass and you need to hold tight tolerances repeatedly. In my testing, it outperformed the Genmitsu 4030 on an aluminum 1/4 end mill test by a significant margin — fewer chatter marks and better corner accuracy. The dual linear rails on all axes give it a stability advantage that no other machine at $1,800 matches. If you are comfortable with a little firmware tweaking, this is the best value in metal-capable desktop routers.

The Case for an Alternative

If you plan to cut mostly wood, plastic, or thin acrylic, save money and get a Genmitsu or WorkBee. The RX6040’s rigidity is overkill for soft materials, and you will not benefit from the ball screws. Also, if you rely on G-code spindle speed control for your workflow, the Shapeoko Pro XL (or a machine with a VFD spindle) will save you the manual tuning headache. For someone who values convenience over ultimate rigidity, those alternatives are better. Read our Yarbo robot lawn mower review if you are also automating your outdoor space.

You can see the current price of the AnoleX RX6040 here.

Practical Guide: Setup, Use, and Getting the Most From It

Getting Started Without the Frustration

Plan for a two-hour initial setup if you are methodical. Begin by mounting the gantry to the base — 8 bolts, each requiring a 6mm Allen key. The control box has pre-labeled ports for each stepper motor and limit switch; double-check the wiring diagram online because the printed manual has errors. After wiring, connect power and you will need to configure the WiFi: hold the boot button on the ESP32 while powering on to factory reset it. Use a phone to connect to the “ESP3D” network and set your credentials. The first homing cycle will require the machine to find all six limit switches; if any axis goes out of bounds, check the direction pins in the firmware. This is the single most skipped step. For a more in-depth guide, our Eco-Worthy CubiX100 Pro review covers a related automation product for your workshop.

Habits That Improve Results

1. Always run a homing cycle before starting any job. The machine uses absolute positioning; skipping homing can cause missed steps to go undetected.
2. Check collet tightness every two hours of continuous cutting. The ER11 can loosen under vibration; I had one part ruined because the end mill walked out 0.3mm.
3. Use a mist coolant system for any metal cutting. Without coolant, aluminum chips weld to the tool. I used a simple air-mist setup from Amazon.
4. Save your backlash compensation values in the firmware. The Grbl settings are editable via the web UI. Measure each axis with a dial indicator and input the values.
5. Document your speeds and feeds for each material. The machine behaves differently with different tools; keeping a log ensures consistency in future projects.

Mistakes Worth Avoiding

• The mistake: Tighten the ball screw nuts too much during assembly — The fix: Leave a small amount of pre-load to avoid binding at the ends of travel.
• The mistake: Start a job without jogging first to verify clearances — The fix: After homing, use the web UI to jog to each corner of the work area to ensure the tool will not collide with clamps or the table edge.
• The mistake: Ignore the spindle dial position when starting G-code — The fix: Always start with the spindle at zero speed and slowly turn up during the first toolpath to avoid tool breakage.
• The mistake: Skip lubricating the ball screws after a long session — The fix: Wipe them clean and apply light machine oil every 10 hours of use to maintain smooth motion.

Right Person, Wrong Person

Buy This If You Are:

• A hobby machinist with a dedicated bench and 110V power: You need a machine that can produce aluminum and brass parts for hobby projects like RC models or small automation. The RX6040’s rigidity ensures you get accurate parts without a second finish pass.
• Someone upgrading from a 3018 or 3040 router: You already understand the quirks of desktop CNC and are frustrated with frame flex. The dual rails and ball screws solve that problem directly.
• A small-scale fabricator making one-off or low-volume parts: You need repeatable precision for jigs or fixtures. The 0.005mm repeatability is more than adequate for most engineering tolerances.
• A budget-conscious buyer who values hardware over software ease: You are willing to spend time tuning firmware and learning the web UI in exchange for a mechanically superior machine.

Look Elsewhere If You Are:

• A beginner who wants to start cutting within an hour: The out-of-box experience is not polished. Consider a pre-assembled machine like the Shapeoko Pro if you prioritize quick setup.
• A production shop running steel parts daily: The 1.5kW spindle and ER11 collet are not suited for heavy production. Look at a Tormach 770 or a Haas mini-mill.
• Someone who needs integrated tool changing or automatic spindle speed: Without VFD control, this machine cannot automate speed changes. Look at a router with a VFD spindle, like the BZT PCB 750.
• Engraving mostly wood or soft materials: You will pay for rigidity you do not need. A Genmitsu 4030 saves $600 and performs equally on wood.

Price, Value, and Where to Buy

The AnoleX RX6040 is priced at 1799.2USD at the time of this review. In the desktop CNC category, that puts it in the upper mid-range. You get mechanical components that normally appear on machines costing $3,000 or more: dual HGH-15 rails, 1204 ball screws, and a full-metal table. The trade-off is in electronics and convenience. Is it good value? For the metal-cutter who uses the machine seriously, yes — you are paying for the parts that directly impact cut quality, not for a polished user interface. For the casual user, it might feel like too much money for a machine with a manual spindle dial.

Warranty and Support Reality

AnoleX offers a one-year warranty against manufacturing defects on the RX6040. Coverage includes the frame, linear rails, ball screws, and stepper motors. It does not cover misuse, nor does it cover wear items like collets or spindle bearings. To claim warranty, you contact AnoleX support via email. In my experience, they responded within 48 hours but the language barrier was noticeable. They sent a replacement limit switch promptly when mine arrived faulty. The return policy through Amazon is standard within 30 days, but you pay return shipping on a 93-pound package. For peace of mind, buying through Amazon is the best route. The AnoleX RX6040 review and rating on Amazon is currently 5.0 out of 5 stars from 8 ratings, but that sample is small.

The Verdict

What the Testing Period Showed

Four weeks of cutting aluminum, brass, and steel confirmed that the RX6040’s mechanical rigidity is its standout feature. The dual linear rails and ball screws deliver repeatable precision that outclasses every competitor in its price band. The compromises — manual spindle speed, sparse documentation, and limited accessories — are real but surmountable for an experienced operator. Any thorough AnoleX RX6040 review honest opinion must note that this machine rewards the prepared user and punishes the impatient one.

The Recommendation

The AnoleX RX6040 is conditionally worth buying at $1,799. If you have experience with CNC routing, value mechanical build over electronic convenience, and need to cut metals regularly, buy it without hesitation. If you are new to CNC or prioritize a plug-and-play experience, look at the Shapeoko Pro or Genmitsu 4030 instead. I rate it 4 out of 5 — one point deducted for the manual spindle speed control and sparse documentation, which unnecessarily steepen the learning curve.

If You Have Used It, Tell Us

Have you owned the RX6040 for more than a month? How did your experience with the steel cutting compare? Drop a comment below and share your settings — the community benefits when we compare real-world results. For now, you can check the latest price on Amazon.

Questions People Actually Ask

Is the AnoleX RX6040 actually worth the price?

If you cut metal for a living or serious hobby, yes. The dual linear rails and ball screws alone justify the cost — you would spend $1,000 just on those components if you built a router from scratch. You sacrifice some convenience features, but for precision metal work, the RX6040 outperforms anything else under $2,000. For wood-only users, it is overkill.

How does it hold up against the Shapeoko Pro XL?

The Shapeoko Pro has better software and spindle speed control, but its linear rails are only on the X-axis; Y and Z use wheels and rails with a single guide. The RX6040’s dual rails on all axes give it a clear advantage in rigidity. For aluminum and steel cuts, the RX6040 will produce better surface finishes and tighter tolerances than the Shapeoko.

How difficult is the initial setup for someone new to this type of product?

If you have never assembled a CNC router, expect a full afternoon. The mechanical assembly is straightforward with basic tools, but the firmware and WiFi configuration require reading documentation. I estimate three hours for a first-timer. The manual does not cover troubleshooting, so you will need online forums. Not recommended as a first CNC for absolute beginners.

What additional items do you need that are not in the box?

You need end mills (the box includes none), a Z-probe tool for touch-off (not included), workholding like T-slot nuts and clamps, and a coolant system for metal cutting. I suggest a basic mist coolant kit and a set of carbide end mills. This verified retailer often bundles accessories.

What does the warranty actually cover, and how is customer support?

The warranty covers manufacturing defects on the frame, rails, ball screws, and motors for one year. It does not cover wear items like collets or spindle bearings. Customer support is responsive via email but limited in English. They replaced a faulty limit switch for me within a week. For serious issues, you are better off working with Amazon’s return policy.

Where should I buy it to get the best price and avoid counterfeits?

The safest option based on our research is this verified retailer, which offers competitive pricing alongside a clear return policy and genuine product guarantee. Avoid third-party sellers with significantly lower prices — they may ship refurbished units without warranty.

Can the RX6040 engrave on steel?

Yes, but with limitations. I tested engraving on mild steel using a 1/8 inch carbide engraving bit at 0.2mm depth, 15,000 RPM, with coolant. The machine handled it without chatter, and the engraving was clean. However, deeper engraving requires multiple passes. For hardened steel, you will need a diamond-coated bit and very shallow passes. The rigidity helps, but the 1.5kW spindle limits material removal rate.

How loud is it during operation?

At 24,000 RPM cutting aluminum, the spindle whine is around 78 dB — about a gas leaf blower. With pendant control, the stepper motors add a high-pitched hum. When cutting steel at 12,000 RPM, the noise is lower but the cutting sound is harsher. If you work in a shared space, expect to need hearing protection for extended use. The sound level is typical for a machine of this class.
